V-Guard 2 Hp Single Phase Dewatering Sewage Pump With Float Switch, 15 m Max. Head, 30000 LPH (VSWS-TW55US)- 1 Year Warranty
Description :
The Sewage Submersible Pump is used for draining pits and deep roadway underpasses, as well as for dewatering basements and courtyards subject to a flooding risk or groundwater. This pump is known for its durability and high performance. The submersible pump is very compact, thus the installation process gets easy.

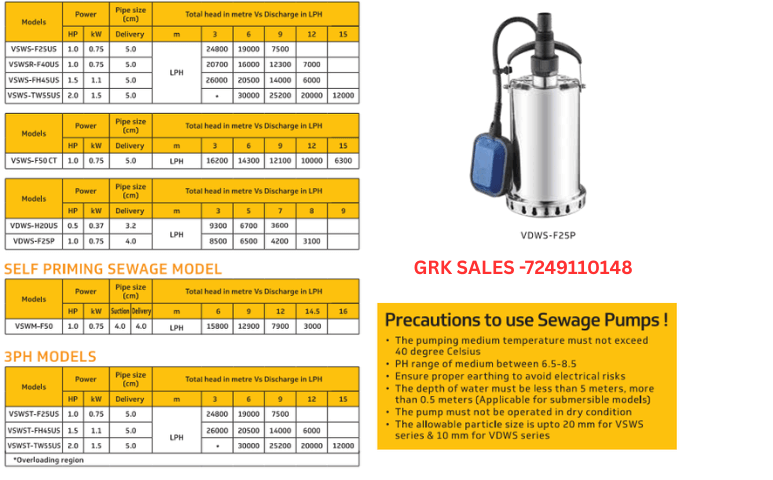

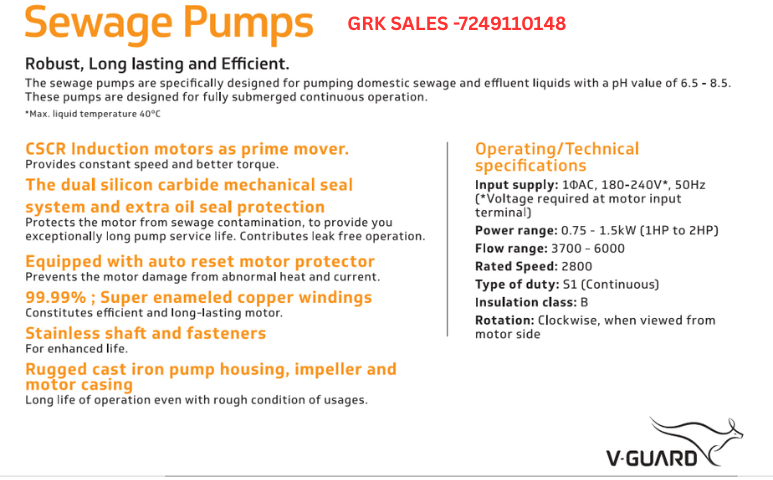

Specifications :
Model No. : VSWS-TW55US
Product Type : Dewatering Sewage Pump
Motor Power : 1.5 kW
Electricity Connection : Single Phase
Body Material : SS 304
Pipe Size : 50 MM
Speed : 2800 RPM
Solid Handling Size : 20 MM
Impeller Material : CI
Max. Head Range : 6 to 15 Meter (19 to 49 Feet)
Discharge Range : 30000 to 12000 LPH (500 to 200 LPM)
Insulation Class : B
Type of Duty : S1 (Continuous)

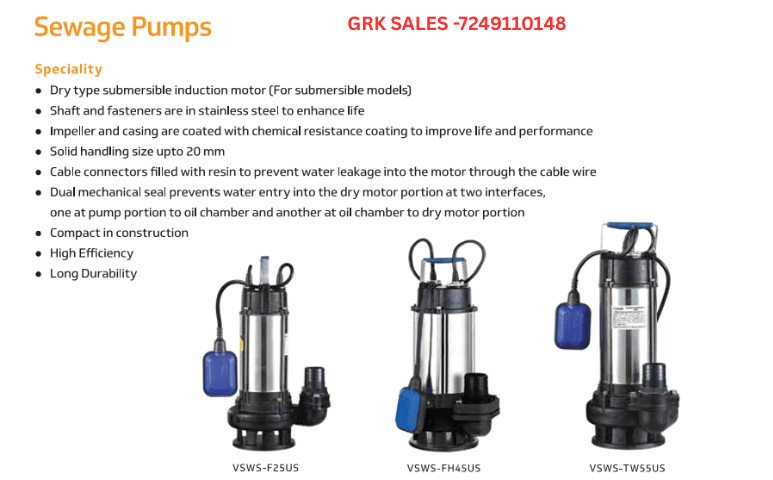

Features :
Dry type submersible induction motor
Shaft and fasteners are in stainless steel to enhance lifeImpeller and casing are coated with chemical resistance coating to improve life and performance
Solid handling size upto 20 mm
Cable connectors filled with resin to prevent water leakage into the motor through the cable wire
Dual mechanical seal prevents water entry into the dry motor portion at two interfaces, one at pump portion to oil chamber and another at oil chamber to dry motor portionCompact in constructionHigh EfficiencyLong Durability

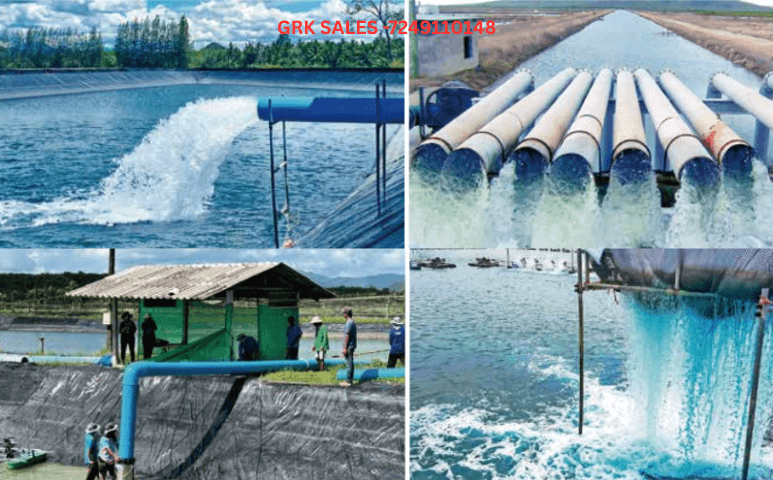

Applications:
Construction Sites
Swimming Pools
Food Processing Industries
Hotels and Restaurants
Paper Mills
Sewage Treatment Plants
Sugar Factories
Waste Water Treatment Plant
FAQ – Crompton STPCS Series
Q. What cleaning solutions can I use in the Crompton STPCS Series?
A. Use only detergents or cleaning agents specifically designed for pressure washers. Avoid using bleach, acids, or harsh chemicals, as these can damage the internal pump components and reduce the machine’s lifespan.
Q. Can I use hot water in the Crompton STPCS Series?
A. No. The Crompton STPCS Series is designed for use with cold water only. Using hot water can cause severe damage to the seals and pump system.
Q. How do I clean a clogged nozzle?
A. Turn off the machine and disconnect the spray gun before inspecting the nozzle. If clogged, gently use a fine piece of wire or a nozzle cleaning pin to remove debris. After clearing, run clean water through the nozzle to ensure it is fully unclogged before reconnecting.
Q. How often should I check the water inlet filter?
A. Inspect the water inlet filter regularly—ideally before each use. Keeping it clean prevents debris from entering the pump and ensures optimal pressure performance.
Q. What should I do if the pressure drops suddenly?
A. Check for blocked nozzles, kinked hoses, or low water supply. Clean the nozzle and inspect all connections for leaks. If the issue persists, contact Crompton customer service or an authorised service centre.
Safety Tips
1. Always use safely: Never point the spray gun at people, pets, or electrical outlets. Keep children and bystanders away while operating the machine.
2. Release pressure after use: After switching off the pressure washer, always squeeze the trigger to release any remaining pressure before disconnecting hoses or nozzles.
3. Never run without water: Operating the machine without water supply can cause severe pump damage. If water flow stops during use, turn off the machine immediately.
4. Use proper power connection: Ensure the plug and socket are dry before connecting. Avoid using damaged extension cords.
5. Store safely: After use, coil the hose properly, disconnect power, and store the unit in a cool, dry place away from direct sunlight or freezing temperatures.
Top Brand: Crompton
⭐ 89% Positive Ratings from over 10,000+ Customers
📦 10,000+ Recent Orders from this trusted brand
💪 Renowned for Quality, Durability, and Performance
What's in the Box?
Warranty Card – For product registration and service support.
Inbuilt Flog (Float Switch) – Ensures automatic operation and protection.
3-Meter Inbuilt Power Cable – Durable and ready for use.
Inbuilt Connector – For easy connection between the pump and pipe.
Product Videos
Important Safety Information:
Use only with proper water supply and grounded power connection. Never operate without water. Keep away from children. Do not point spray at people or electrical sources.
